SpenDrop

Most everyday payments in Malaysia now end with a confirmation screen: Touch 'n Go, a bank app, DuitNow QR, Apple Pay. SpenDrop turns that screen into an expense. Take a screenshot, share it to SpenDrop, check the form it fills in, and save. Cash spending goes in by hand with Quick Cash.

It is a native iOS app with a Share Extension, written in Swift and SwiftUI with SwiftData for storage and Apple's Vision framework for OCR. Everything runs on the phone: there is no server, no networking code and no third-party package. It runs on the simulator and on the developer's iPhone; it is not on the App Store.

Expense apps ask you to type what your phone already shows you. The payment screen has the amount, the merchant, the provider and a reference number, but copying them by hand is slow enough that most people stop doing it. And a payment confirmation is financial data: sending it to a server to be read is a poor trade for convenience.

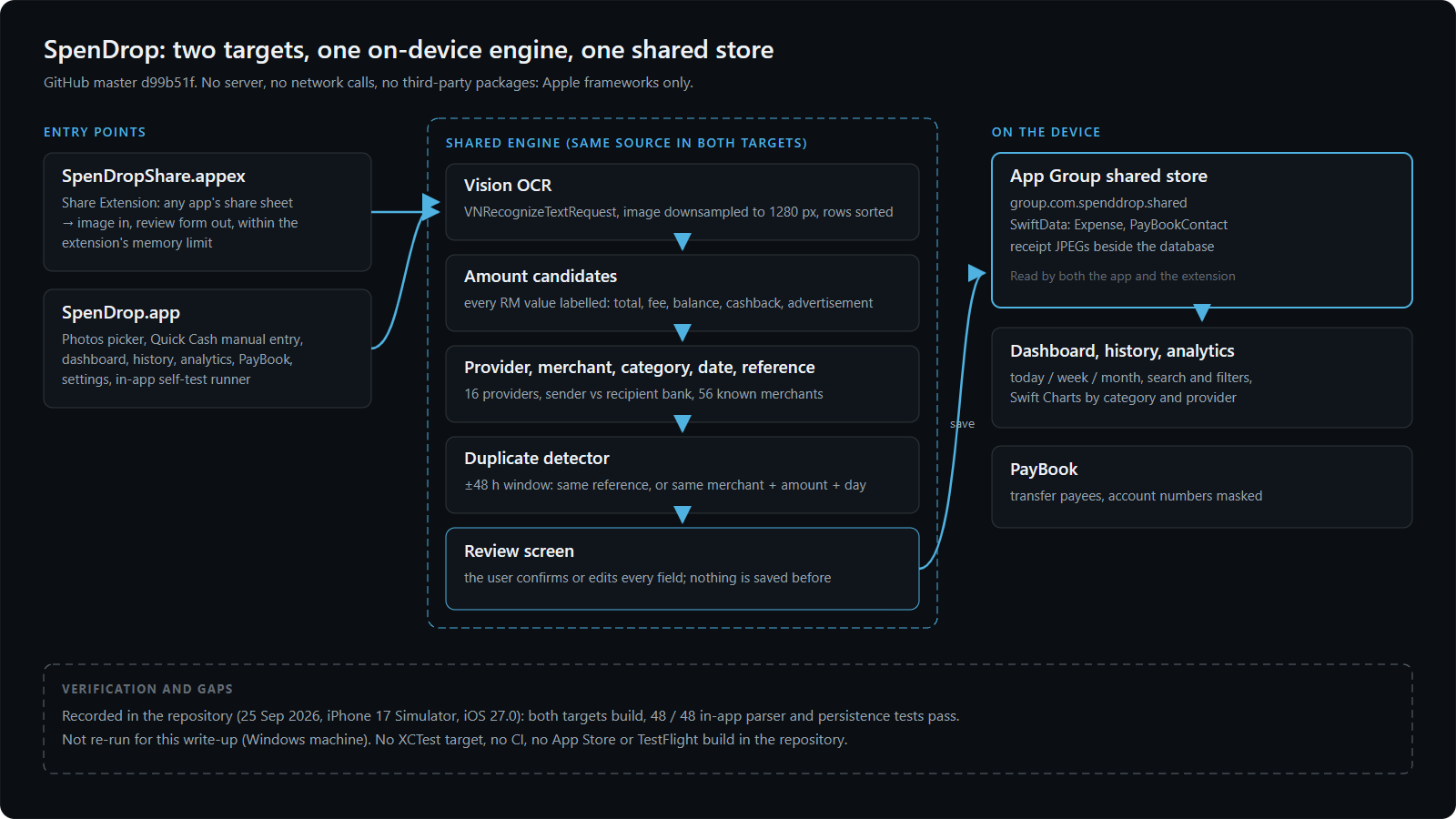

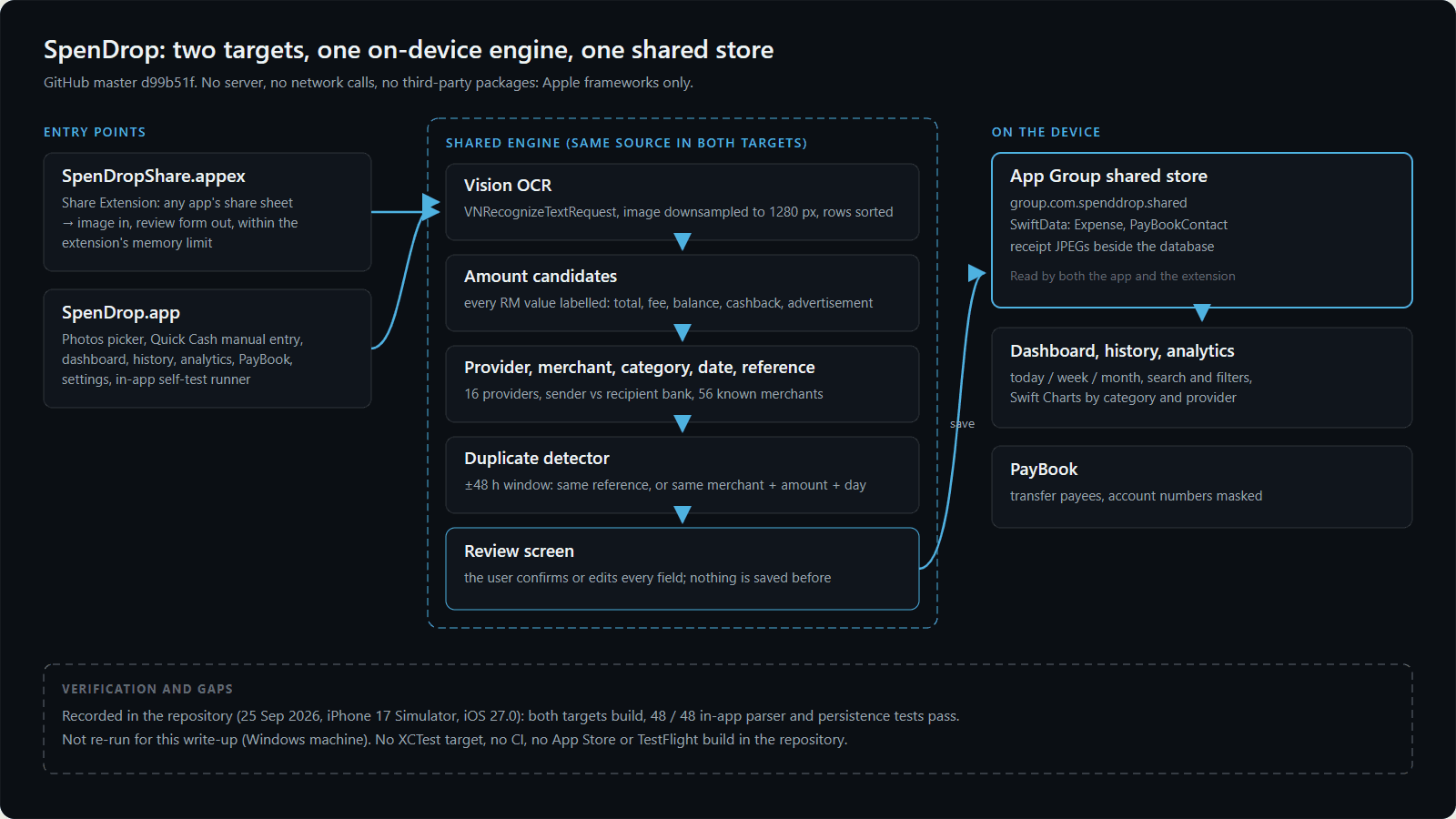

The Share Extension receives the image from any app's share sheet. Vision reads the text on the phone, on an image downsampled to 1280 pixels to stay inside the extension's memory limit, and the lines are sorted into rows. A rule-based parser then works out what the screen is: which provider, which merchant, which category, the date and time, and the reference number. The extension shows the result as a review form; nothing is saved until the user confirms.

The app and the extension are two separate processes, so they share one SwiftData store through an App Group. An expense saved from the share sheet is on the dashboard the next time the app opens, and the duplicate check in the extension can see everything the app has saved.

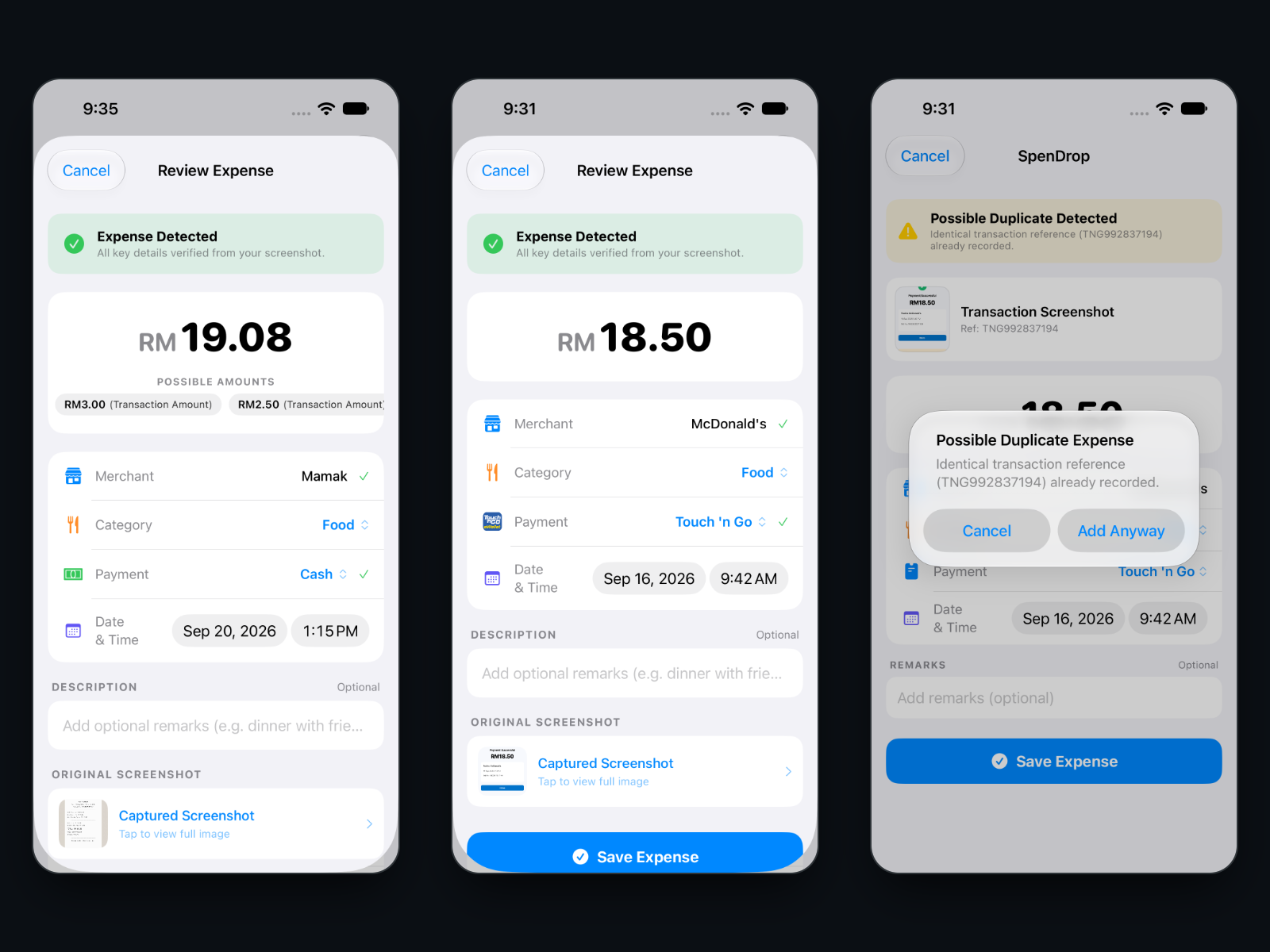

A payment screen rarely has one number on it. A Touch 'n Go confirmation can carry an advert for an RM 450 air conditioner under an RM 18.50 payment; a receipt lists a subtotal, a service charge and a total; a bank screen shows the balance. The parser labels every RM value it finds (total, fee, balance, cashback, discount, advertisement) and chooses from the valid candidates only. When several remain, the review form shows them as one-tap alternatives; when one remains, the row is hidden.

Screens that are not payments at all, such as a balance, a credit limit or reward points, are recognised and are not saved as expenses, or are flagged for review. Sharing the same screenshot twice is caught by its reference number, or by the same merchant and amount on the same day within a 48-hour window, and the user decides whether to add it anyway.

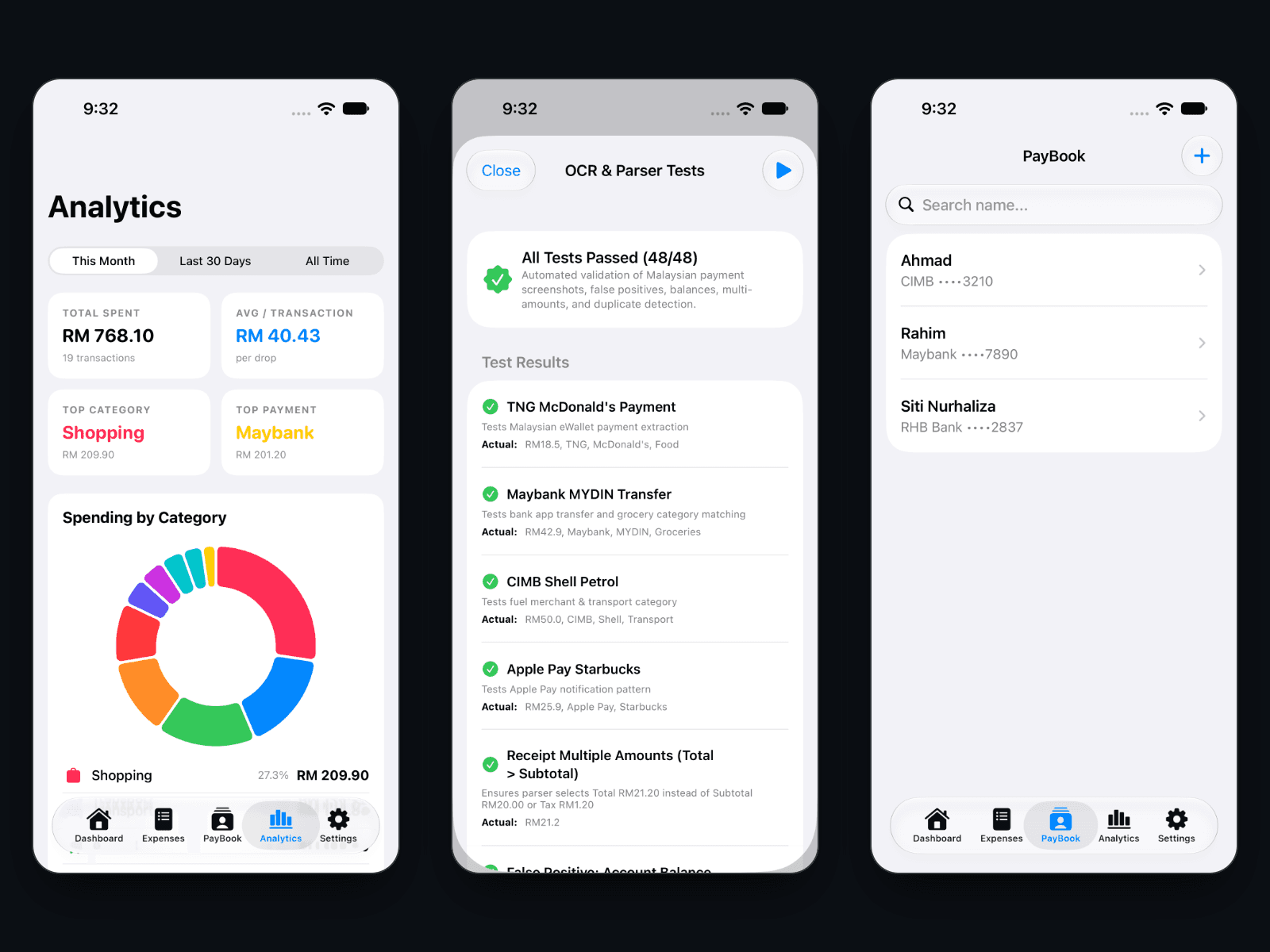

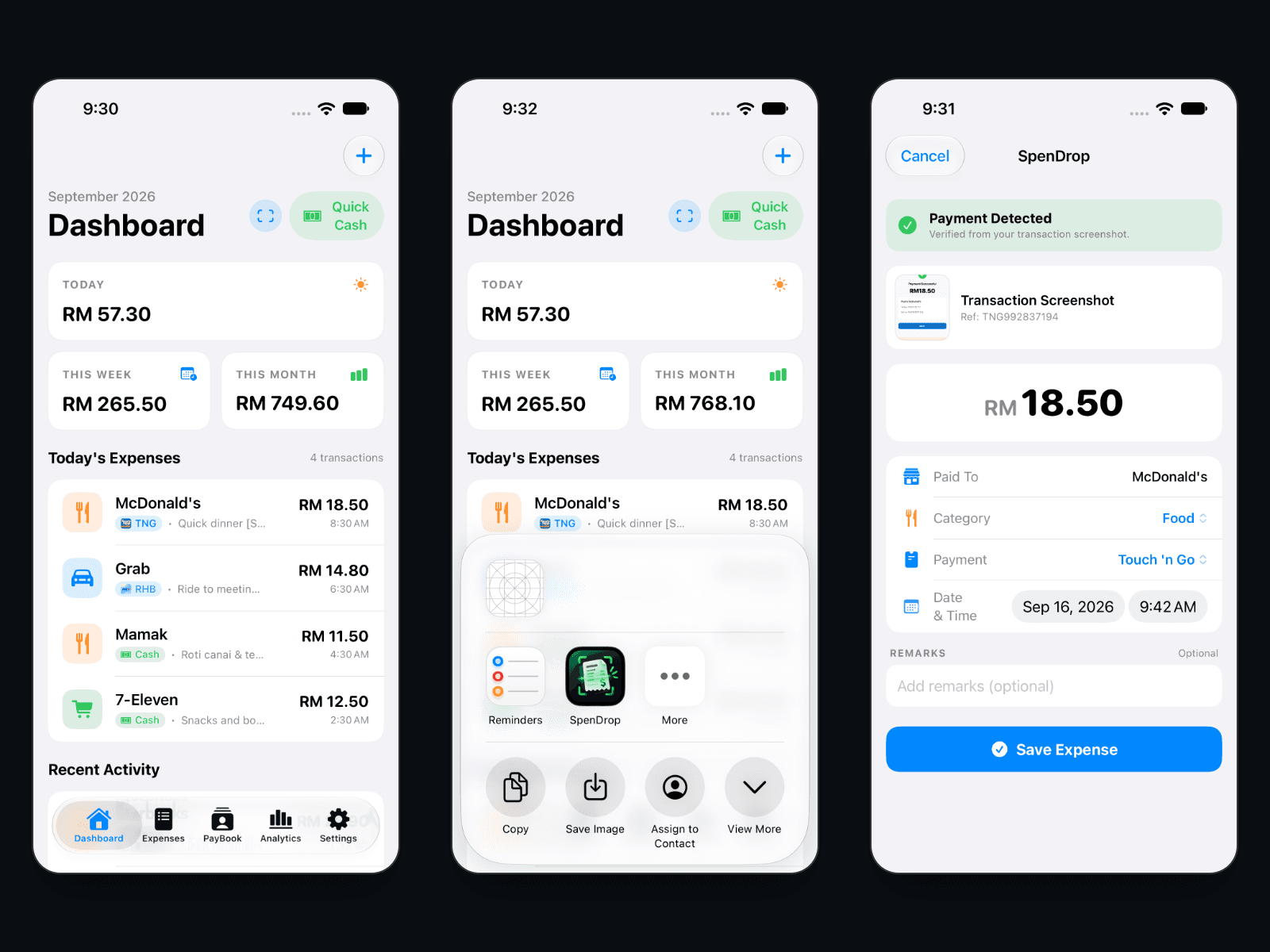

Around capture sits a small expense app: a dashboard with today, week and month totals, a searchable and filterable history with edit and delete, analytics by category and payment source built with Swift Charts, and PayBook, a list of frequent bank-transfer payees with account numbers masked by default and a one-tap copy. A settings screen includes a self-test runner that executes the app's 48 parser and persistence checks on the device.

Adverts looked like payments. A Touch 'n Go confirmation can show an RM 450 air-conditioner banner under an RM 22.00 transfer, and any pattern for an RM amount matches both. The fix gives every amount a meaning before any is chosen: advertisement keywords, the words on neighbouring lines, and position, using Vision's bounding boxes, since adverts sit in the bottom of the screen. Layout turned out to be a stronger signal than the text alone.

Interbank transfers name two banks. A CIMB to Maybank receipt mentions both, and the expense belongs to CIMB. Keyword matching alone was ambiguous, so the parser now reads the screen as a document: it collects the banks named after a recipient label first, then reads the from-block, and never attributes a payment to a bank that only appears as the recipient. Apple Pay is treated the same way, as a wrapper around the bank behind it.

Column-aligned receipts still break it. On a synthetic receipt with the label and the amount far apart, Vision returned "TOTAL" and "RM 19.08" as separate observations, the total lost its label, and a line item won. The review screen correctly downgraded to "Possible Expense Detected", and the case is recorded as a known limitation rather than hidden.

The app carries its own test runner: 48 cases covering provider and merchant parsing, amount selection, false positives, duplicates and persistence, provider detection, ten reference screenshots from real layouts, and PayBook. The repository records a run on 25 September 2026 on an iPhone 17 simulator with iOS 27: both targets built and 48 of 48 passed. The suite feeds synthetic OCR text, so it tests the parser, not Vision's recognition quality.

For this write-up the source was checked directly: 42 Swift files, two targets (app and extension), 48 registered test cases, and no networking code. The tests were not re-run here because the machine used runs Windows. There is no XCTest target and no CI.
